ONN-X3F Center Design Cheap Led Freezer Light IP65

FOB Reference Price:Get Latest Price
US $3-8 / Pieces | 1 Piece/Pieces Led Freezer Light (Min. Order)
Contact Supplier Start Order
Loading... Place Sample Order
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
Refrigerator Lamps, Led Freezer Light
LED Light Source:
SMD 2835
Surface Treatment:
Other
Input Voltage(V):
12/24/220
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2000
Lamp Luminous Efficiency(lm/w):
110
CRI (Ra>):
80
Color Temperature(CCT):
2800-3200 / 4000-4500 / 5500-6000K
Working Temperature(℃):
-18 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CCC, CE, FCC, RoHS
Base Type:
2G11
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ONN
Model Number:
ONN-X3F
Voltage:
12V / 24V / 220V
Light source:
SMD 2835
Power Rating:
12W / 20W /24W /28W
Length:
975/1340/1500/1800mm
View angle:
210 degree
luminous flux:
100Lm/W
CCT:
2700-3200K&4000-4500K&5500-6500K
lifespan:
50000 Hours
Appearance design:
Two led strip on both side expecially for center
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Led Freezer Light
Packaging & Delivery
Packaging Details
1pcs/ inner box + PE bag ; 50pcs/ outer box
According to customer's requests
Port
Shenzhen, China
Lead Time :
7-15days



ONN-X3F  Center Design Cheap Led Freezer Light  IP65    4ft 5ft 6ft  12v/24v/220v









Application :





Freezer inner illumination,refrigeratory inner illumination,bakery and confectionery,pharmaceutical factory,fishery industry,edible mushrooms industry(suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof” lights )





Product Features :




1. X3F have all the advantages of led fixture like Energy saving, long lifespan, CCT dimmable, which is the inevitable tend.

2. All vapor sealed, don’t have to concern about the water drop or moisture formed by steam.

3. Adopt high brightness SMD2835 LED chip, it features wider angle,low thermal resistance, Color area
concentrated, low brightness decay with a long life span, best choice for light fixture

4. Ingress protection is up to IP65, safe to use.

5. Slim body, diversified installation method, easy and safe.


Technical Parameters :







ModelTube length(mm)Fitting length(mm)VoltagePower
X3F-375 315380220V AC(50/60Hz)8W
X3F-550490555220V AC(50/60Hz)11W
X3F-635575640220V AC(50/60Hz)12W
X3F-800740805220V AC(50/60Hz)16W
X3F-935875940220V AC(50/60Hz)18W
X3F-108510251090220V AC(50/60Hz)20W
X3F-123511751240220V AC(50/60Hz)24W
X3F-149514351500220V AC(50/60Hz)30W
Installation1. Metal clips(standard)  2. Double faced adhesive tape  3. By magnet
Size W.14.5 x H.12mm Cable0.8M
Beam angleLeft 90°emitting   Right 90° emitting   Middle 120° emitting
ProtectionIP65
efficiency95-100Lm/W
CCT6000-6500K
CRI:>80RaPF>0.9
DriverInternal driver, Non-isolated
Lifetime40,000HMaterialPC
Working temp.-20~45℃Working humidity10~90%

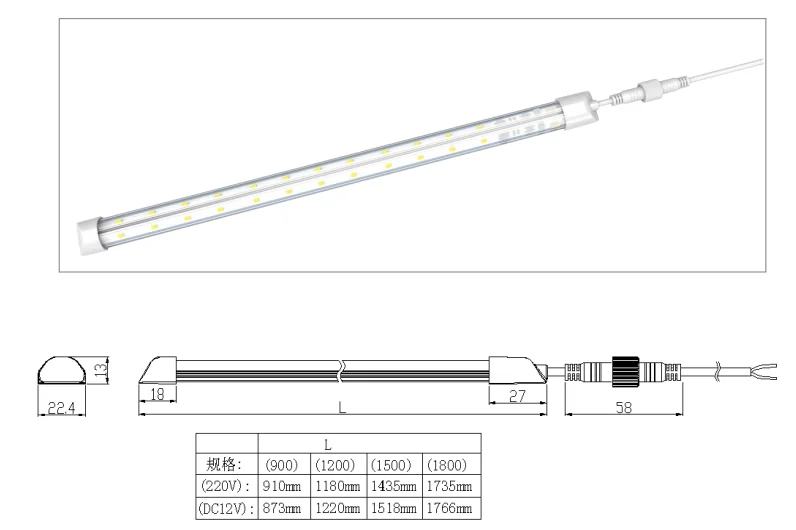

Product  Size Drawing  :











More Details :







Installation:













Application  :






X3D app.jpg
