M10A magnet 24v driver external screw fixed led work spot light

FOB Reference Price:Get Latest Price
US $20-21 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ONN
Model Number:
M10
Item Type:
Machine Tool Working Lamps
Light Source:
LED 1W/3W/PCS
Input Voltage(V):
DC24V
Central LUX:
70cm:550-600LUX(30 degrees (bead surface lens))
Color Temperature(CCT):
4000-4500K/5500-6000K
CRI (Ra>):
70
IP Grade:
IP65
Source Lifespan:
50000hours
Angle:
15°
Certificate:
CE
Packaging & Delivery
Packaging Details
1pcs/foam bag,several pcs/carton
Delivery Time
Shipped in 7 days after payment

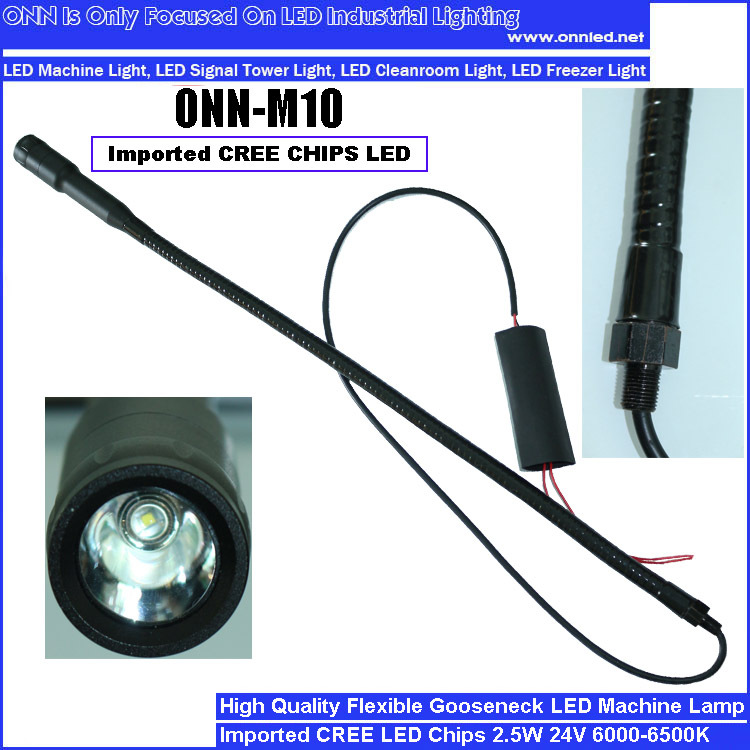

M10A magnet 24v driver external screw fixed led work spot light

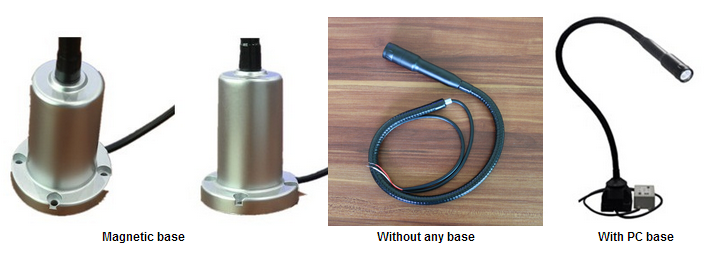

Base choice as below:



M10A with manget base picture for reference:







Application:



Spark machine, laser welding machine, have high request for protection grade, point light source lighting places.





Product Advantages:



1. ONN - M10B product adopt high power lamp bead, reflective cup structure, make the light more focused;



2. With the heat shrinkable tube and aluminum,high dissipation;



3. Universal hose, let lighting follow one's inclinations, hose outsourcing imported heat shrinkable tube, oil, abrasion resistance, beautiful;



4. Long life capacitance and improve the drive external, drive life, modular design, once the drive end life convenient change;



5.High IP Grade to IP65, to prevent the waterproof and dust went in;



6.With plastic base,more easier to install,and make lower cost,is quite suitable for using on middle economic cutting machine.









Technical Parameters:



BrandONN Environment Tem. -20 to +45 degree
Light sourceHI Power CREE LED 1W/3W/PCSMounting Fixed by screws /  Magnet
Lifespan of light source50000 hoursPlace of OriginShenzhen China
View angle15 degrees IP gradeIP65
Central LUX70cm: 550-600LUXWorking VoltageDC24V



Model

Power(W)

Rated Current

Voltage

CCT

ONN-M10B-B1

1W/3W

70mA

24V

5500-6000K

ONN-M10B-B2

1W/3W

70mA

24V

4000-4500K









Product Size Drawing:







Snake led machine light Application in GF Group cutting machines:

Company Information

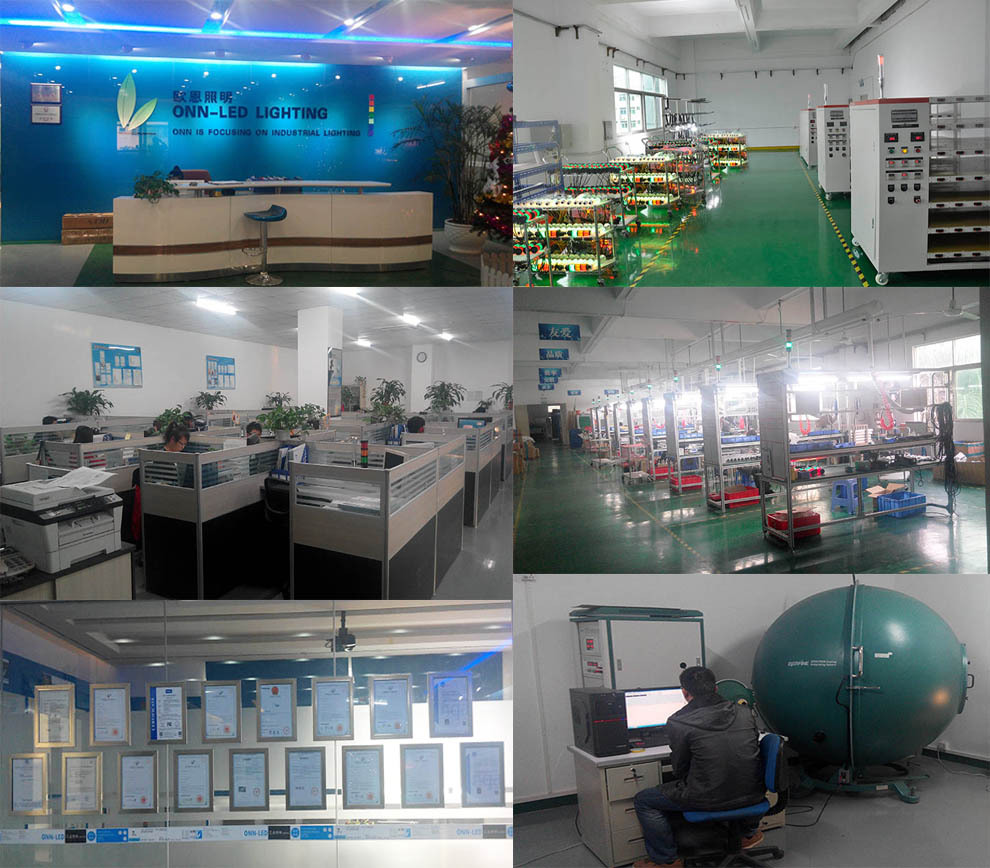

Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao'an district , our company focus in led machine tools light, led freezer light and cleanroom. we believe FOCUS will gather our R&D and workers strength to present our customers elite products. Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.

We look forward to work with you, provide you high quality product and build win win cooperation.





Packaging & Shipping

1. Our Standard Export Packing, carton box, durale and safe. Customized packing is avaible for MOQ order.
2. Delivery time: samples 7-10 days, mass order 10-15 days.
3. Shipping: by international express, by air or by ship.

4. Payment: paypal, HSBC, T/T.
